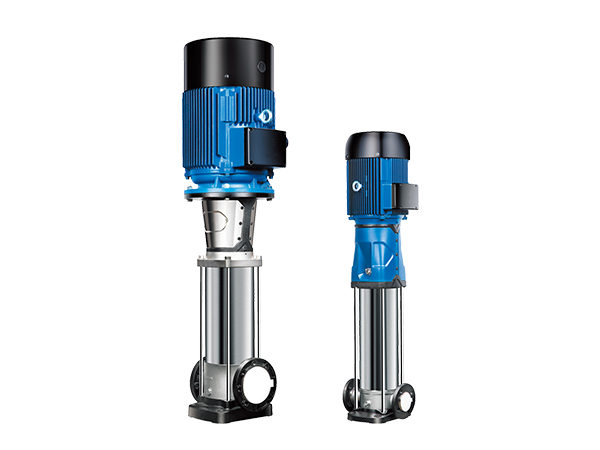

Vertical Multistage In-Line PumpsTVM2 (50Hz)
Vertical Multistage In-Line Pumps
- Suction x Discharge Bore (mm)
- 32 x 32 - 150 x 150
- Motor Output (kW)
- 0.37 - 110
The TVM2-series is a vertical multistage centrifugal pump designed for handling freshwater. Since it is an in-line type, the pump occupies less installation space. The major wetted parts are made of 304 or 316 stainless steel. It is available in a wide selection, from 0.5 to 240 m3/h in the capacity range, and from 4 to 312 m in the pumping head range. The pump is suitable for irrigating agricultural farm, supplying or distributing industrial water, and circulating cold or warm water, etc.
- The product information provided on this website may differ from the actual product specifications due to ongoing product improvements and the like. Before using these products, please obtain a delivery specification sheet.
- With some exceptions, the metric system (SI units) is used for the units and values shown in the product information provided on this website; values shown in parentheses are included for reference only.
