Submersible Aerators / Air Mixers

Submersible Aerators / Air Mixers Lineup

  • TRN

    Submersible aerators that generate tiny bubbles to produce a high amount of dissolved oxygen and enable efficient aeration and agitation

  • BER

    Submersible jet aerators optimized for pre-aeration and prevention of bacterial spoilage

  • PLS with Aeration Kit

    Lightweight, compact resin-made submersible jet aerators for shallow water application

  • TAR

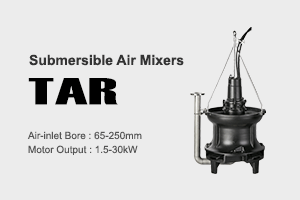

    Submersible air mixers combine aeration and mixing to promote wastewater treatment at public and industrial treatment plants

Structure

Submersible Self-aspirating Aerators: TRN series

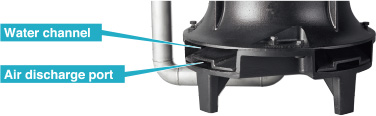

The aspirated air, mixed with water viciously by mechanical forces inside the impeller and guide vane, transforms into tiny bubbles. Moreover, the mixed flow of air and water is evenly discharged in multiple directions along the circumference.

TRN
Mixed Flow of Air-water

Mixed Flow of Air-water

Tiny bubbles are discharged in multiple/one direction, whereby creating convective currents that agitate the water. As the bubbles rise, a large amount of oxygen dissolves in the water.

  • 1. Anti-wicking Cable Entry

    Prevents water incursion due to capillary action should the cable sheath be damaged or the end of cable submerged. Also prevents moist air from infiltrating the motor housing and condensation from forming inside the housing due to temperature differences between the housing and outside air.

  • 2. Motor Protector

    Miniature Thermal Protector React to excessive heat caused by dry-running. The bimetal strip opens to cause the control panel to shut the power supply.

    Circle Thermal Protector Directly cuts the motor circuit if excessive heat builds up or overcurrent occurs in the motor.

  • 3. Dual Inside Mechanical Seals with Silicon Carbide Face

    Isolated in the oil chamber where a clean, non-corrosive and abrasion-free lubricating environment is maintained. Compared with the water-cooled outside mechanical seal, it reduces the risk of failure caused by dry-heating and adher-ing matter. The silicon carbide provides 5 times higher corrosion, wear and heat resistance than the tungsten carbide. Rubber parts are made of NBR or FPM (FKM) which provides higher resistance to heat and chemicals.

  • 4. Oil Lifter

    Provides lubrication and cooling of the seal faces down to 1/3 of normal oil level, thus maintaining a stable shaft sealing effect and prolonging seal life longer.

  • 5. Oil Seal

    Used as a "Dust Seal," it protects the mechanical seal from abrasive particles.

  • 6. Air Seal Mechanism

    Protects the mechanical seals by flooding the air passage with an “air seal” that prevents water from contacting the mechanical seals during operation. This proprietary technology helps to prolong the service-life of the mechanical seals.

  • 7. Special Semi-open Impeller & Suction Cover

    Generates a liquid flow that causes negative pressure to form on the backside of the impeller vanes and draw in air from above the water’s surface. Both the impeller and suction cover are highly wear-resistant 410 stainless steel casting.

Tsurumi's submersible aerators are used at wastewater treatment facilities to aerate and agitate industrial wastewater, livestock wastewater and other water that needs treating. More specifically, they provide the primary aeration in reactor tanks and aeration tanks at the heart of the water treatment process, and aeration and agitation in flow regulating tanks. These aerators produce tiny bubbles in the wastewater by furiously mixing in air they draw from above the wastewater's surface, and discharge the aerated wastewater to the outside. The mixed flow of air and water contains a high amount of dissolved oxygen and makes aeration and agitation very efficient.

Submersible Aerators Catalogue Download

Tsurumi offers two kinds of aerators in three series. The TRN-series features Tsurumi's baseline submersible aerators that produce a high amount of dissolved oxygen and enable efficient aeration and agitation, while the BER-series and the PLS-series with aeration kit are submersible jet aerators that generate a powerful unidirectional flow. All three series are built to draw air themselves while submerged in wastewater, so they can aerate and agitate wastewater without requiring a blower, which greatly reduces both installation space and noise.

Despite their simple structures, Tsurumi submersible aerators are packed with original technologies that have been tested and proven over many years of R&D and market use, such as an anti-wicking cable, dual inside mechanical seals with silicon carbide faces and Oil Lifter. Moreover, they are designed and built for the degree of reliability and durability required for 24 hour-a-day continuous operation. Plus, when it is time for maintenance, it suffices to raise just the pump from the tank; the tank does not need to be drained as is the case of a plate/tube diffuser, so these aerators are economically beneficial in terms of running costs.

Mixed flow of air-water profile during operation

Submersible Aerators: TRN series

  • Start of operation

    Mixed flow of air-water is discharged in multiple directions.

    Start of operation
  • Rising by airlift

    Tiny bubbles produce a high amount of dissolved oxygen.

    Rising by airlift

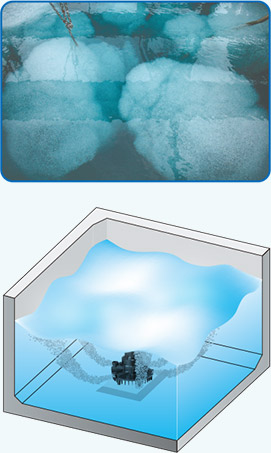

  • Agitation by convection

    The rising bubbles enable efficient aeration and agitation.

    Agitation by convection

Special Offer for TRN series

How to aerate in tank deeper than max. water depth

In combination with a blower (Example of installation in a 10 m-deep tank)

Applicable for deep tank aeration below max. water depth. Because it draws air on its own, the aerator works with a general-purpose blower instead of a high-pressure blower.

In combination with a blower

Optional specifications

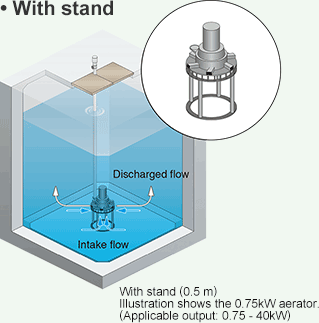

With stand
With draft tube

Related Products

  • Tsurumi Rotary Air Blowers

    Tsurumi also makes rotary air blowers that can be paired with aerators / air mixers to deliver aerobic agitation. These blowers are available with air-cooled type or water-cooled type, and 3-lobe spur rotors or helical rotors, therefore contact an authorized dealer for more information.

  • Tsurumi Rotary Air Blowers

Structure

Submersible Self-aspirating Jet Aerators:
BER & PLS (with Aeration Kit) series

With the jet injector mechanism, the aspirated air mixes with water and is ejected through the diffuser, simultaneously agitating and aerating the ponded water. The mixed air-water is ejected powerfully in one direction, which effectively agitates the water across a wide area.

BER
Mixed Flow of Air-water

Mixed Flow of Air-water

Tiny bubbles are discharged in multiple/one direction, whereby creating convective currents that agitate the water. As the bubbles rise, a large amount of oxygen dissolves in the water.

  • 1. Anti-Wicking Cable Entry

    Prevents water incursion due to capillary action should the cable sheath be damaged or the end of cable submerged. Also prevents moist air from infiltrating the motor housing and condensation from forming inside the housing due to temperature differences between the housing and outside air.

  • 2. Motor Protector

    Miniature Thermal Protector Detects excess heat, therefore, protecting the pump against overheating and dry-running.

    Circle Thermal Protector Directly cuts the motor circuit if excessive heat builds up or overcurrent occurs in the motor.

  • 3. Dual Inside Mechanical Seals with Silicon Carbide Face

    Isolated in the oil chamber where a clean, non-corrosive and abrasion-free lubricating environment is maintained. Compared with the water-cooled outside mechanical seal, it reduces the risk of failure caused by dry-heating and adher-ing matter. The silicon carbide provides 5 times higher corrosion, wear and heat resistance than the tungsten carbide. Rubber parts are made of NBR or FPM (FKM) which provides higher resistance to heat and chemicals.

  • 4. Oil Lifter

    Provides lubrication and cooling of the seal faces down to 1/3 of normal oil level, thus maintaining a stable shaft sealing effect and prolonging seal life longer.

  • 5. Oil Seal (excluding PLS)

    Used as a "Dust Seal," it protects the mechanical seal from abrasive particles.

  • 6. Air Release Valve (BER)

    Fitted on the pump casing to prevent the air lock. When air flows through the valve, the ball stays at the bottom, but when the pumped water starts to flow, the ball closes the outlet because of its buoyancy.

  • 7. Semi-open Channel Impeller (BER)
    Vortex Impeller (BER)

    Minimizes the possibility of trouble due to clogging by solid matters.

  • 8. Nozzle Ring (BER)
    Nozzle Flange (PLS)

    Channels the water discharged from the pump into a jet, as part of the jet injector mechanism.

  • 9. Diffuser (BER & PLS)

    Creates a mixed flow of air and water by injecting the aspirated air into the water.

Tsurumi's submersible aerators are used at wastewater treatment facilities to aerate and agitate industrial wastewater, livestock wastewater and other water that needs treating. More specifically, they provide the primary aeration in reactor tanks and aeration tanks at the heart of the water treatment process, and aeration and agitation in flow regulating tanks. These aerators produce tiny bubbles in the wastewater by furiously mixing in air they draw from above the wastewater's surface, and discharge the aerated wastewater to the outside. The mixed flow of air and water contains a high amount of dissolved oxygen and makes aeration and agitation very efficient.

Submersible Aerators Catalogue Download

Tsurumi offers two kinds of aerators in three series. The TRN-series features Tsurumi's baseline submersible aerators that produce a high amount of dissolved oxygen and enable efficient aeration and agitation, while the BER-series and the PLS-series with aeration kit are submersible jet aerators that generate a powerful unidirectional flow. All three series are built to draw air themselves while submerged in wastewater, so they can aerate and agitate wastewater without requiring a blower, which greatly reduces both installation space and noise.

Despite their simple structures, Tsurumi submersible aerators are packed with original technologies that have been tested and proven over many years of R&D and market use, such as an anti-wicking cable, dual inside mechanical seals with silicon carbide faces and Oil Lifter. Moreover, they are designed and built for the degree of reliability and durability required for 24 hour-a-day continuous operation. Plus, when it is time for maintenance, it suffices to raise just the pump from the tank; the tank does not need to be drained as is the case of a plate/tube diffuser, so these aerators are economically beneficial in terms of running costs.

Mixed flow of air-water profile during operation

Submersible Jet Aerators: BER / PLS (with Aeration Kit) series

  • Rising by airlift

    Mixed flow of air-water is jetted in one direction.
    Tiny bubbles produce a high amount of dissolved oxygen.

    Rising by airlift

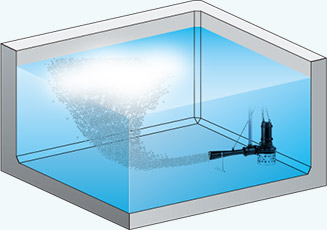

  • Agitation by convection

    The rising bubbles enable efficient aeration and agitation.

    Agitation by convection

Structure

Aerobic Agitation (with Blower)

TAR
Mixed Flow of Air-water

Mixed Flow of Air-water

Tiny bubbles are discharged in downward 4 directions, whereby creating convective currents that agitate the water. As the bubbles rise, a large amount of oxygen dissolves in the water.

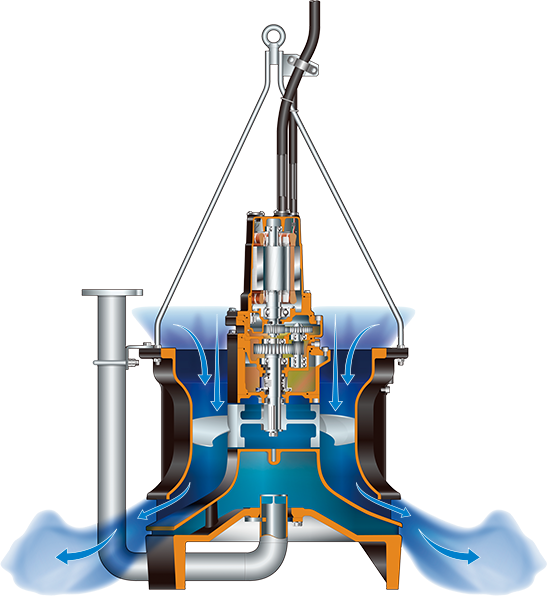

Anaerobic Agitation (without Blower)

TAR

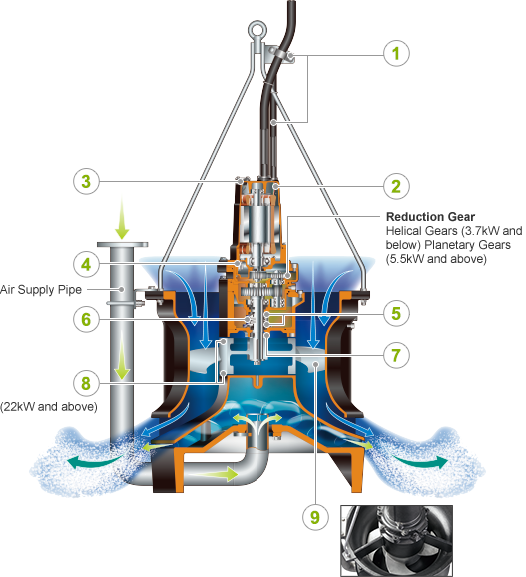

  • 1. Cable Clip & Protection Tube

    Protect the cable and cable connection. The protection tube guards the cable against wear caused by contact with the tank wall, while the clip ensures the cable stays connected under the tension caused by tugging and pulling.

  • 2. Anti-wicking Cable Entry

    Prevents water incursion due to capillary action should the cable sheath be damaged or the end of cable submerged. Also prevents moist air from infiltrating the motor housing and condensation from forming inside the housing due to temperature differences between the housing and outside air.

  • 3. Motor Protector

    Circle Thermal Protector (7.5kW and below) Directly cuts the motor circuit if excessive heat builds up or overcurrent occurs in the motor.

    Miniature Thermal Protectors (11kW and above) React to excessive heat caused by dry-running. The bimetal strip opens to cause the control panel to shut the power supply.

  • 4. Leakage Sensor

    Float Type (7.5kW and below)
    Electrode Type (11kW and above)
    Detects flooding into the incursion water storage chamber and oil chamber that may occur in a worst case scenario. When flooding is detected, signals are sent to operate the indicator lamps through the external control panel.

  • 5. Dual Inside Mechanical Seals with Silicon Carbide Faces

    Isolated in the oil chamber where a clean, non-corrosive and abrasion-free lubricating environment is maintained. Compared with the water-cooled outside mechanical seal, it reduces the risk of failure caused by dry-heating and adhering matter. The silicon carbide provides 5 times higher corrosion, wear and heat resistance than the tungsten carbide. Rubber parts of the upper and lower fixing rings are made of NBR or FPM (FKM), which provides higher resistance to heat and chemicals.

  • 6. Oil Lifter

    Provides lubrication and cooling of the seal faces down to 1/3 of normal oil level, thus maintaining a stable shaft sealing effect and prolonging seal life longer. The Oil Lifter is Tsurumi original design.

  • 7. Oil Seal

    Used as a “Dust Seal”, it protects the mechanical seal from abrasive particles.

  • 8. Mouth Ring & Wear Ring
    (200TAR422 and 250TAR430 only)

    Prevent wear in the casing, resulting in reduced maintenance costs.

  • 9. Propeller (Axial Flow Impeller)

    Produces a powerful current that keeps solid matter from clogging. The propeller is cast from corrosion-resistant 304 stainless steel and features an original design that generates an axial flow.

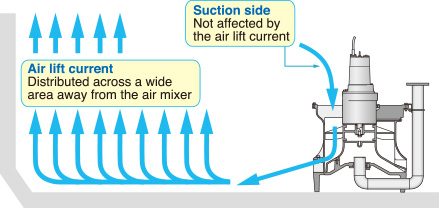

Downward 4-Directional Discharge

  • Tsurumi’s original downward 4-directional discharge design
    spreads flow across a wide area. It effectively homogenizes the
    wastewater by creating conditions that make it hard for sludge to
    precipitate and settle on the tank bed.

Tsurumi’s TAR-series submersible air mixers combine aeration and mixing to promote wastewater treatment at public and industrial treatment plants. The powerful current discharged from the high-performance axial-flow impeller shears the air supplied by the blower into tiny bubbles, forming a furious flow of mixed air and water that efficiently delivers oxygen throughout the wastewater. Moreover, Tsurumi’s original downward 4-directional discharge design spreads that mixed flow outward along the bottom of the tank toward the edges to ensure homogeneity.
When paired with a Tsurumi rotary air blower, the TAR air mixers not only offer effective aerobic agitation but they can also be used for both aerobic and anaerobic processing by simply switching the blower on and off.

Submersible Aerators Catalogue Download

Like Tsurumi’s core product lines of submersible pumps, the TAR air mixers come loaded with numerous original technologies tested and proven over the years, including anti-wicking cable, motor protector, leakage sensor, dual inside mechanical seals with silicon carbide faces and Oil Lifter. These superior features underscore the high reliability, lasting durability and sound quality that enable continuous duty.

As an added convenience, the TAR-series can be installed on a guide rail fitting device that allows the air mixers to be easily lowered and raised into and out of tanks on guide rails. This has huge economic advantages compared to air diffusion systems that are typically anchored to the tank bed, as the tanks do not need to be drained when mixers require maintenance, which can greatly reduce downtime.

In combination with a blower in aerobic agitation

When paired with a general-purpose blower,
TAR-series air mixers offer effective aerobic agitation.

In combination with a blower in aerobic agitation
・Provide 1 blower for each submersible air mixer

Related Products

  • Tsurumi Rotary Air Blowers

    Tsurumi also makes rotary air blowers that can be paired with aerators / air mixers to deliver aerobic agitation. These blowers are available with air-cooled type or water-cooled type, and 3-lobe spur rotors or helical rotors, therefore contact an authorized dealer for more information.

  • Tsurumi Rotary Air Blowers
