High volume
single-phase pump
Liquid Paraffin Oil = Fish Friendly
This high-purity oil is commonly used in the cosmetics, pharmaceuticals and food processing equipment. Because it is a food grade lubricant, the pump can be safely used for water features in carp / koi ponds and fish farms.
Application
- Water circulation, waterfalls and other water features in carp / koi ponds and fish farms.

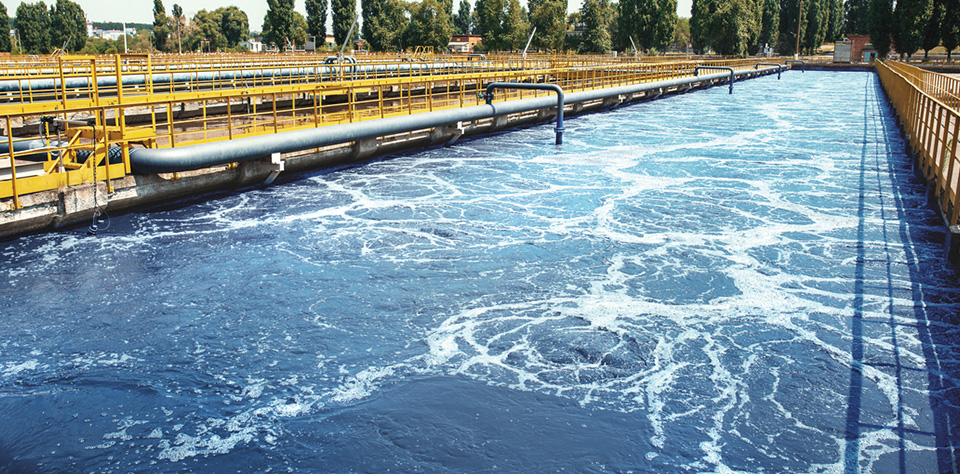

- Draining sewage, wastewater, and rainwater from septic tanks, small-sized wastewater treatment plants and kitchen wastewater traps in homes and office buildings.

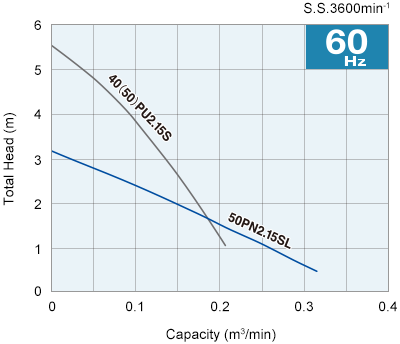

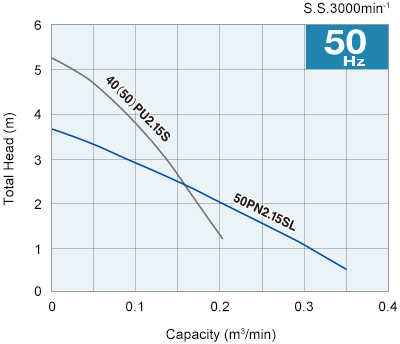

Perfomance Curves
Comparison with the pump of same motor output (0.15kW) in VANCS series.
Standard Specifications
| Discharge Bore mm |
Model | Motor Output kW |
Phase | Starting Method |
Solids Passage mm |
Dimensions L×W×H mm |
Dry Weight*1 kg |
Cable Length m |
|---|---|---|---|---|---|---|---|---|
| 50 | 50PN2.15SL | 0.15 | Single | Capacitor Run | 19.7 (50Hz) 19.3 (60Hz) |
239×176×396 | 5.6 | 5 |
*1 Weights excluding cable
