Case Studies

Agriculture / Livestock / Aquaculture Seawater / High-Temperature Liquid

Circulation System for Fish Farm

Circulation System for Fish Farm
Japan

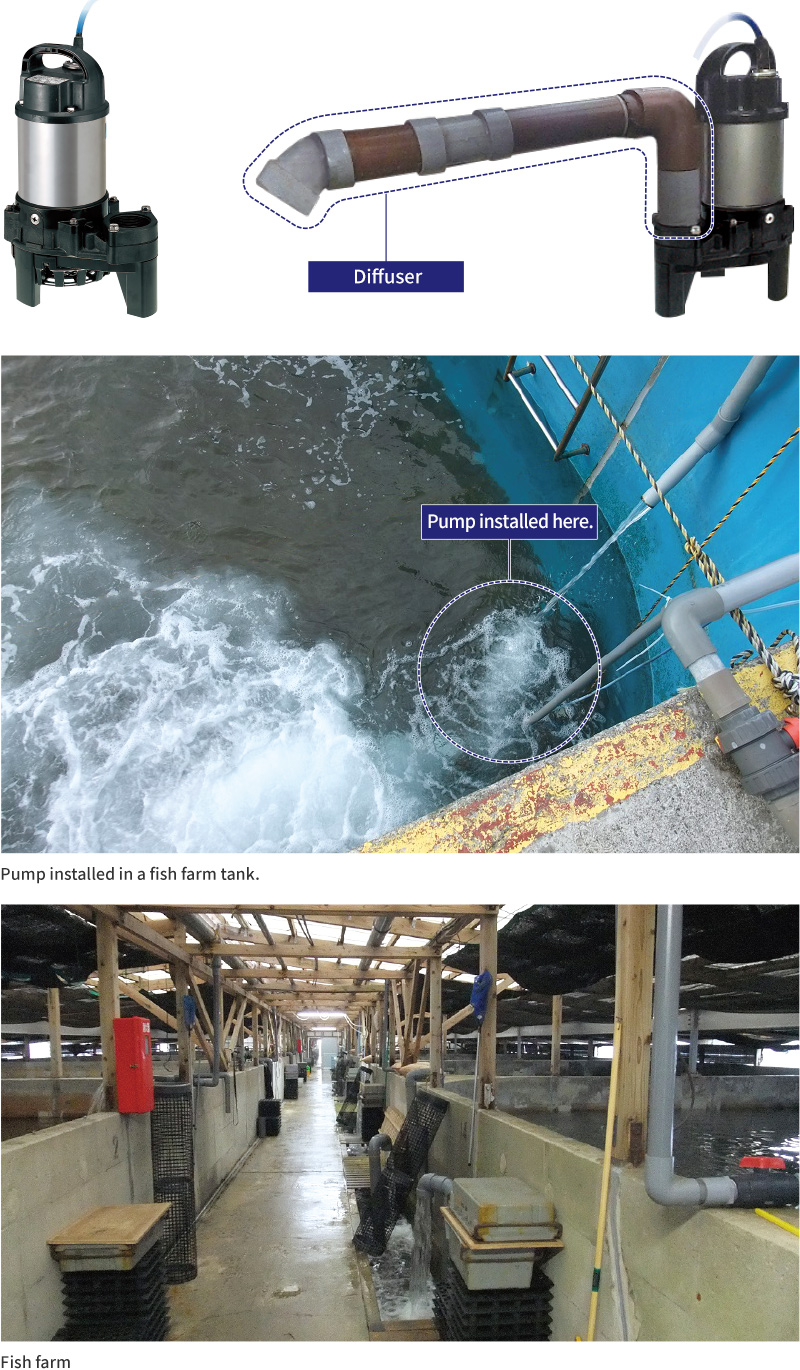

The operator of a blowfish farm wanted a number of pumps to circulate the water in their tanks. Because cast-iron pumps readily corrode and break down, the company bought 24 TM pumps with the hope that they would last longer. Made of titanium, TM pumps stand up to corrosion even when exposed to high concentrations of chlorine ions as you find in seawater. The titanium also makes them very light -- weighing just 6.6kg -- and easy to relocate, which has made this customer very happy. The customer also fit the pumps with a home-made diffuser that mixes liquid oxygen into the water to ensure a stable oxygen supply before releasing water.

Specifications of Installed Equipment

Installed Equipment Specifications
Titanium Pumps with Vortex Impeller Model : 50TM2.4
Number of units : 24 units
Discharge Bore : 50mm
Motor Output : 0.4kW
Total Head : 10m
Capacity : 0.08m3/min
