Case Studies

Flood Control / Rainwater

Temporary Seasonal Rainstorm Countermeasure

Temporary Seasonal Rainstorm Countermeasure
Japan

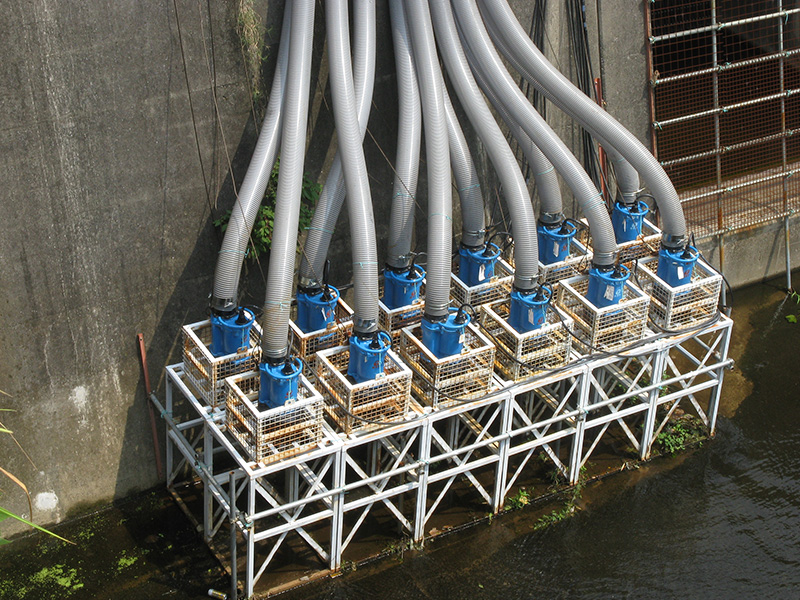

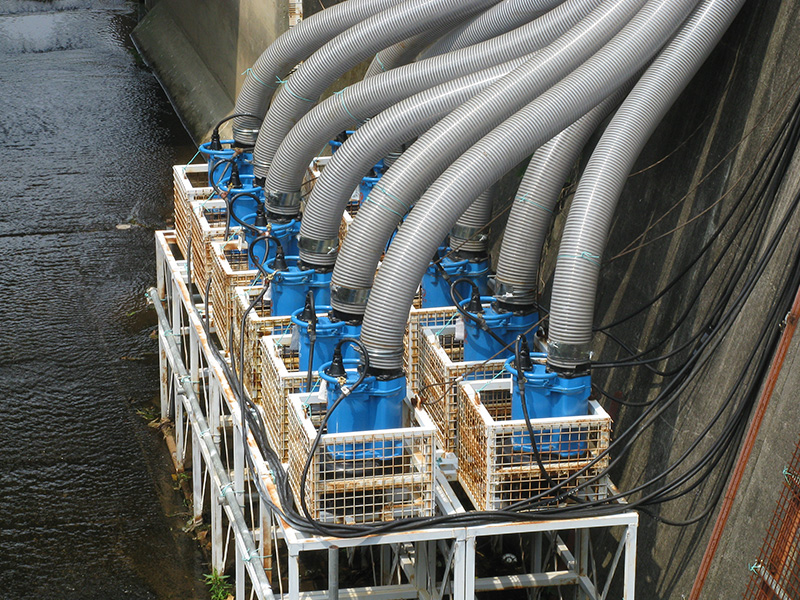

Our twelve KRS-series of submersible dewatering pumps were selected by a local government for use as a seasonal countermeasure to inland flooding caused by storm water. For the project, a permanent platform for installing the pumps was built in the river and, only during storm season, rental pumps and generators are installed. The scaled-down facility is designed to pump storm water that results from seasonal downpours to the river in a short time. To the pleasure of the customer, the pumps used in this facility are easily installed, maintained and removed.

Specifications of Installed Equipment

Installed Equipment Specifications
Dewatering Pumps Model : KRS2-8S
Number of units : 12 units
Discharge Bore : 200mm
Motor Output : 11kW
Total Head : 10m
Capacity : 4m3/min
